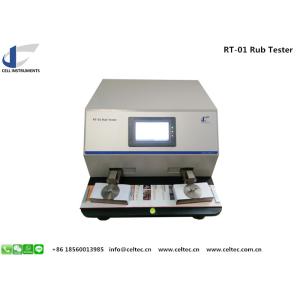

ASTMD5264 Rub resistance tester is used to evaluate the scuffing or rubbing resistance of printed or coated surface of paper, paperboard, film, laminates, substrates, etc.
ASTMD5264 Rub resistance tester is a motor-driven device for moving a weighted test specimen over the printed or unprinted sample through an arc of 57mm for a preset number of strokes.
Standards: TAPPI T830 and ASTM D5264 Standard Practice for Abrasion Resistance of Printed Materials.
Technical Features
1. PLC technology and human-machine operation
2. Five test modes of dry rub, wet rub, wet bleed or transfer, wet smear and functional rub
3. Test speed random setting
4. Dual stations arc movement structure
5. Buzzer reminding after test is finished
6. Precious rub circle control
Technical Data
Rub Pressure 8.9 N(2lb); 17.8N(4lb)
| Rub Pressure | 8.9 N(2lb); 17.8N(4lb) |
| Rub Speed | 20~120 cpm |
| Number of Specimens | 1 ~ 2 |
| Power Supply | AC 220V 50Hz |
| Instrument Dimension | 390 mm (L) x 480 mm (W) x 220 mm (H) |
